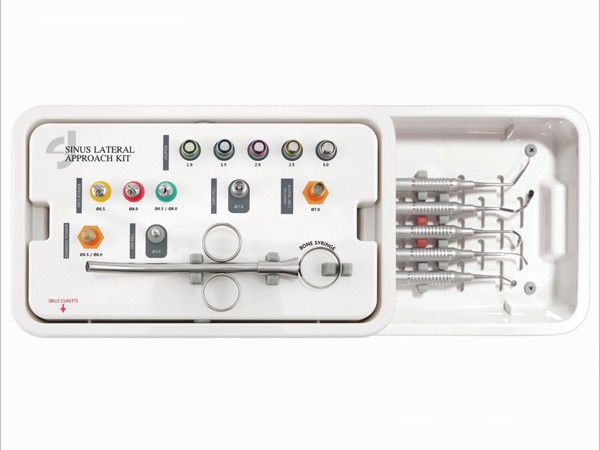

Direction for use COMPONENT Stopper : 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm [Total 5EA] Sinus Reamer : Ø6.5, Ø8.0, Ø6.5/Ø8.0 [Total 3EA] Core Drill : Ø7.0 Diamond Reamer : Ø6.5/Ø8.0 Diamond Core Reamer : Ø7.0 Side Drill : Ø3.5 Drill Bone Syringe : Ø6.0 Sinus Curette : 5 Type HOW TO USE FIRST – Install the stopper to Ø6.5 reamer or Ø8.0 Reamer, and then carry out reaming while exchanging the stopper. – Use Ø6.5 / Ø8.0 Reamer for more flattened reaming or hole expansion to the reamed bone in the semi-circular shape. – Use the diamond Reamer Ø6.5 / Ø8.0 for safer reaming. In addition, Use the diamond reamer when you need to check whether or not the drilling has been carried out. – Use the side drill for trimming around the reamed bone or reaming the hole. – Use the reamer for reaming the sinus wall until the sinus membrane is exposed. Use the sinus curette to serrate the sinus membrane thereafter, and then carry out bone graft using the bone syringe or user’s own apparatus. – Place the implant when every process is finished. SECOND – Install the stopper to core Drill Ø7.0, and then carry out drilling while exchanging the stopper. – Use diamond core drill Ø7.0 for safer drilling. In addition, Use the […]
